Sewer Line Design Projects

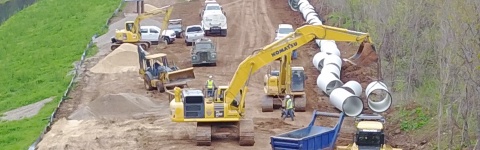

Broadmoor Outfall 48” Sewer Main Rehab:

The project covered the replacement of 3,800 linear feet of 48” Sanitary Sewer, and 1,000 linear feet of 30” Force Main along Fern Avenue and Bayou Pierre. All of which lie within the city limits of Shreveport, Louisiana. A preliminary study outlining design alternatives was produced, that selected the best design solution for the project. Three routes were considered and analyzed in this report, with one ultimately being chosen as the best fit for the specific project needs. The line required tie in junctions with both the upstream existing 30” Force Main, as well as the downstream 60” Main. Both junctions required new boxes to be designed. The route of the new force main required the new line to be bored under the existing pavement of Fern Avenue where it crossed the street. Because of the nature of the existing sewer lines, it was necessary to design a force main to tie into the existing line. The line was then converted into a gravity main, to be in accordance with the existing conditions of the original line. A new asphalt jogging trail was required to be designed for this project, as the existing one was to be removed during the course of construction. Additionally servitude maps with legal descriptions of the boundaries for the required right of way were also included in the plans. Other parts of this project included typical sections, summary of quantities, as well as the traffic control layout for the construction needs of the project. The construction of this project was completed in fall of 2017.

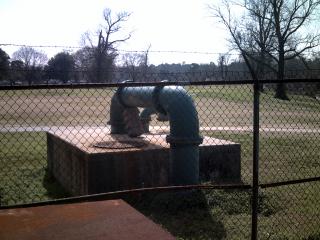

Querbes New Force Main Project:

Project consisted of replacing the 7,586 feet of the existing deteriorated 20” line between the Broadmoor and Querbes lift stations with a new 24” Sanitary Sewer Force Main. Respectively the line originated at the Querbes Lift Station located along Gregg Street. It then traveled south through the Querbes golf course, running along the Fern Street right of way and underneath Ockley Drive. After which it progressed through the back of the Clingman Park & Pierremont Acres Subdivisions, and also under Pierremont Road. Finally the route for the new line culminated at the Broadmoor Lift Station, located along the Bayou Pierre Right-of-way line. Specific tie in details were required to be designed and drawn up for this project, where the new force main tied into the existing line. This was necessary as it was cost prohibitive to take the new line all the way into the existing lift stations before tying it into the existing systems. So it was decided to tie the line into the existing line just outside the existing station, in order to deliver the flow to the appropriate structures.

Column

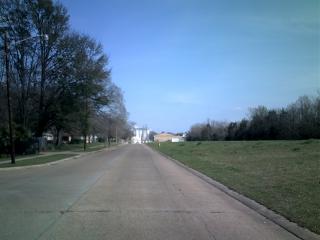

Desoto Street – Wastewater Collection System Rehabilitation:

Project Scope was the design of 5000 feet of a new 15” Sanitary Sewer line to replace an existing undersized and deteriorated 8” sewer along Desoto Street. The new 15” sewer line would replace the existing 8” line, and tie into the existing system. The existing line and its manholes were abandoned in place, as per the project specifics. The plan and profile sheets were produced, as well as the typical sections for the project.

Column

Savannah Place Sub. Lift Station Design:

A new lift station was required for a new 1,000 lot subdivision in Bossier City, Louisiana, that our company was designing. This included all of the paved streets, drainage, water, and sewer lines that would be utilized by the new housing development. This new station would service the sanitary sewerage needs for the new subdivision. The new station was designed to be a 60" Polyethylene wet well, held in place by a 2’ reinforced concrete collar. This collar was anchored into a slab, that was grounded with 20 foot piles. The pump that this well was designed for was a new 425 G.P.M., 460/3 Volts/3 Phase with 27 HPw. This below ground structure was accessible through a new aluminum cover & hatch assembly. Above ground was a new pump control panel, an example of which is shown in the picture.
